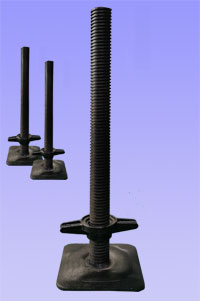

Adjustable Layer Pillar Base |
|
|
|
 |
|
Order Code:
AD500-LA |
|
|
| |
| |
| |
| |
| |
| |
 |
|
雷亞架內梯 及
簡易場控棚 |
| |
| |
| |
| |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|

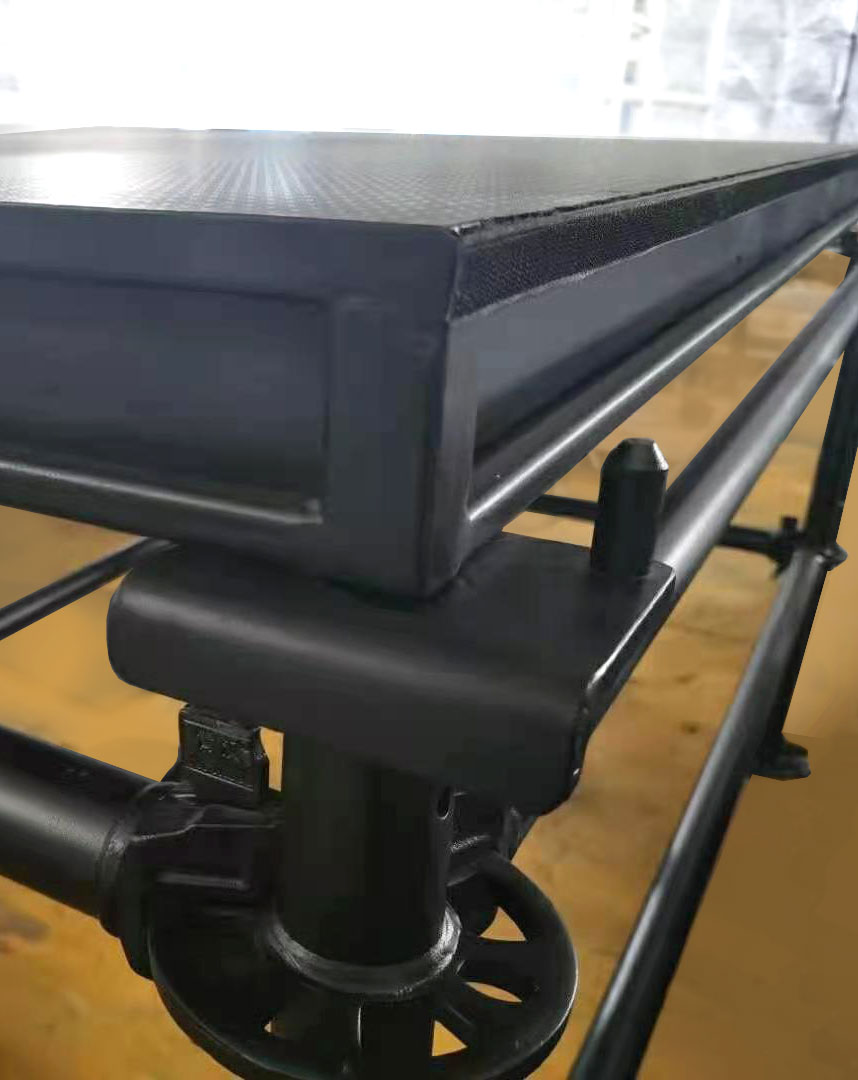

Stage
Board Holder |
|
雷亞舞台跨板釘爪勾 |
|
|
|
|
|
|
|
|

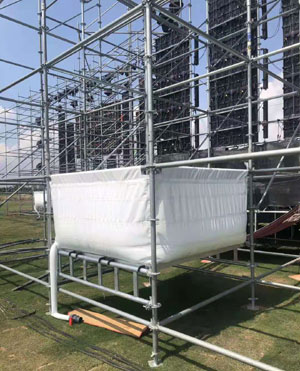

雷亞架-配重水箱: |
|
鋪設簡單,方便收藏.堅固耐用
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Click
up Pictures for more... |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
▲ |
抗壓 雷亞舞台專用跨板。
黑烤 折板鐵皮包邊,堅固耐用. |
|
▼ |
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

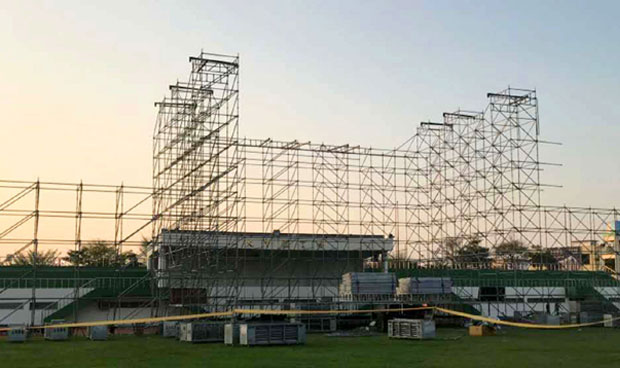

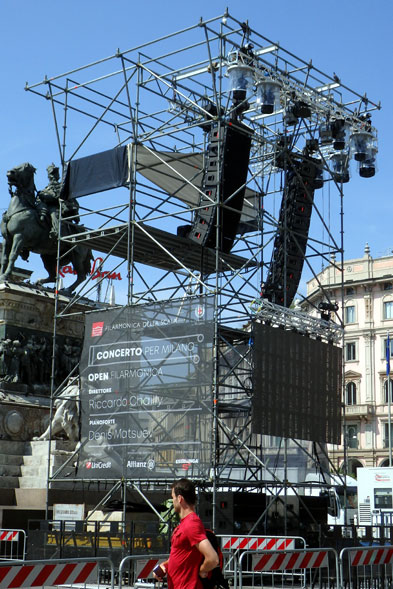

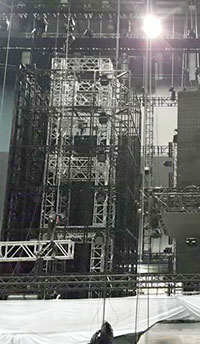

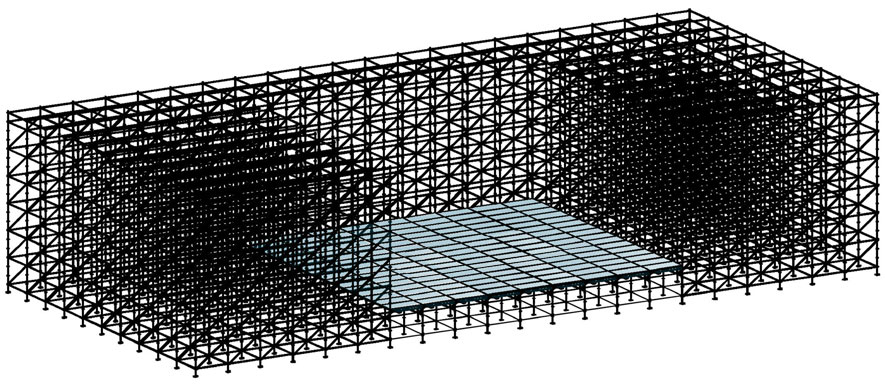

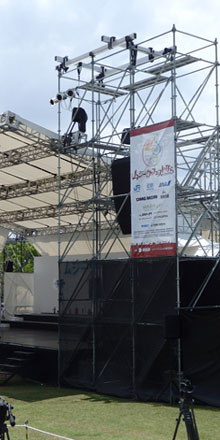

Entertainment Events
Layer Structure |
|
 |
|
All
Scaffold products can be Zinc Treatment
or Black Plating Treatment. |
| |
|

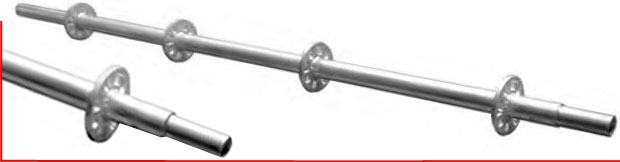

Standard Pillars :
標準雷亞立柱 |
|
|
| |
|
Details . |
|
Specification |
Code |
Weight |
|
Specification |
Code |
Weight |
|
Ø48mm, H:3.0m,
T:3.25mm.(6P) |
LS3000 |
14.2
kg |
Ø48mm, H:1.5m,
T:3.25mm.(3P) |
LS1500 |
7.3 kg |
|
Ø48mm, H:2.5m,
T:3.25mm.(5P) |
LS2500 |
12.0
kg |
Ø48mm, H:1.0m,
T:3.25mm.(2P) |
LS1000 |
5.1 kg |
|
Ø48mm, H:2.0m,
T:3.25mm.(4P) |
LS2000 |
10.1 kg |
Ø48mm, H:0.5m,
T:3.25mm.(1P) |
LS0500 |
2.3 kg |
|
|
|
|
Items 4P=4pc Hook Tray.
Item Number with "B" will be the Black Plating
Treatment.
镀黑产品,
编号尾码 为
"B" |
|
|
|
|

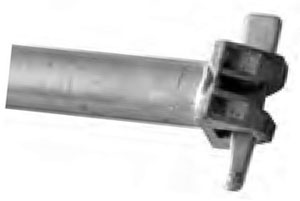

Standard Ledger : 標準雷亞橫拉桿 |
|
 |
 |
|
Details
|
|
Specification |
Code |
Weight |
|
Ø48mm, L:2000mm,
T:3.0mm. |
LL2000 |
7.3
kg |
|
Ø48mm, L: 1000mm,
T:3.0mm. |
LL1000 |
5.1
kg |
|
Ø48mm, L: 500mm,
T:3.0mm. |
LL500 |
3.0
kg |
|
Other
Length or Customers
Dimension also Available |
|
|
|
|
Item Number with "B" will be the Black Plating
Treatment./ 黑色產品,尾號加 "B" |
|
|
|
|
|
|

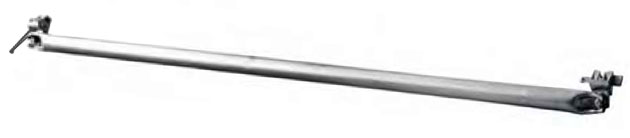

Diagonal
Brace
: 雷亞斜拉桿 |
 |
|
 |
Details
|
|
Specification |
Code |
Weight |
Remarks |
|
W:2.0m, H1.5m, T2.75mm |
LD2400 |
8.7kg |
Standard 2m Brace.2米格框 |
|
W:1.0m, H1.5m, T2.75mm |
LD1755 |
6.4kg |
Standard 1m Brace.1米格框 |
| |
|
|
|
|
Customers Special Spec.
and Dimension requiments
also available |
|
|
|
Item Number with "-B" will be the Black Plating
Treatment.../
黑色產品,尾號加 "B"...... |
|
|
|
|

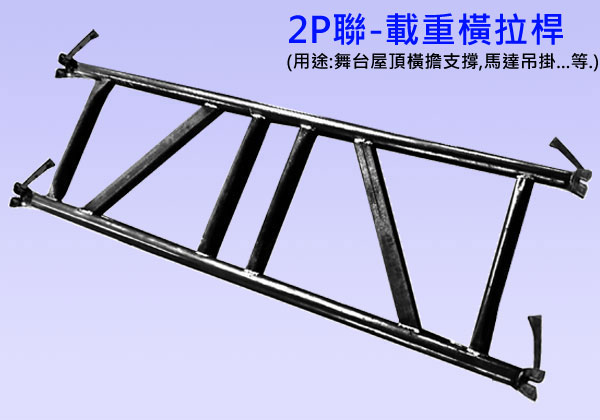

Heavy Duty Ledger : 載重-雷亞
架多管橫拉桿
|
|
Heavy Duty Duo & Trio Ledger
|
Special
specification-load
Ledger |
|
 |
 |
|
|
Order Code |
Details
/
2P及3P連桿 |
|
Duo-LL2000 |
載重双連桿
(24.8kg) |
|
Trio-LL2000 |
載重三連桿 (42.3kg) |
|
用途:
橫擔支撐,馬達及LED吊掛加固...,(格寬:50cm) |
|
|
Order Code |
Details
/

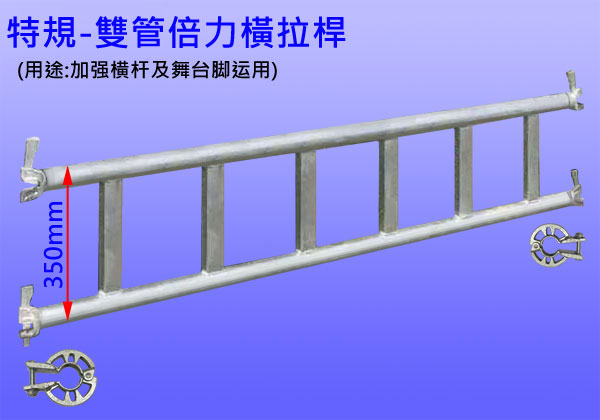

特規-倍力雙管拉桿 |
|
Duo30-2000 |
Zinc
Treatment, (22.3kg) 鍍鋅 |
|
Duo30-2000B |
Black Treatment (22.3kg)
烤黑 |
|
用途:
舞台腳加固,平台支撐,側圍加強...(格寬:35cm) |
|
|
|
( Above item are use for 2 meter partition,
Other dimension also available.) |
|
Item Number with "-B" will be the Black Plating
Treatment./黑色產品,尾號+ "B" |
|
|
|
|

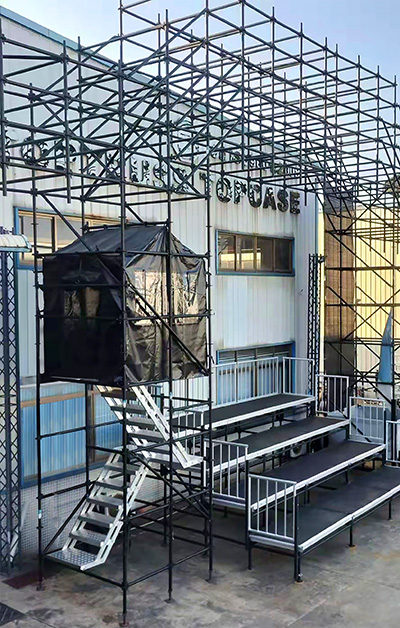

Layer
Structure Working Ladder :
雷亞架-作業內梯
LWL-2000 |
 |
|
Details |
|
安全穩固又寬敞的雷亞架-作業內梯 :
斜向45°, 寬84cm, 立高1.5米,總重:46kg。 上下含包膠安全鋼扣 可跨滿半個內方格。上下階都有
迴轉彎平台。鋁合金制, 質輕,堅固,耐用。
|
|
|
|
|
|
|

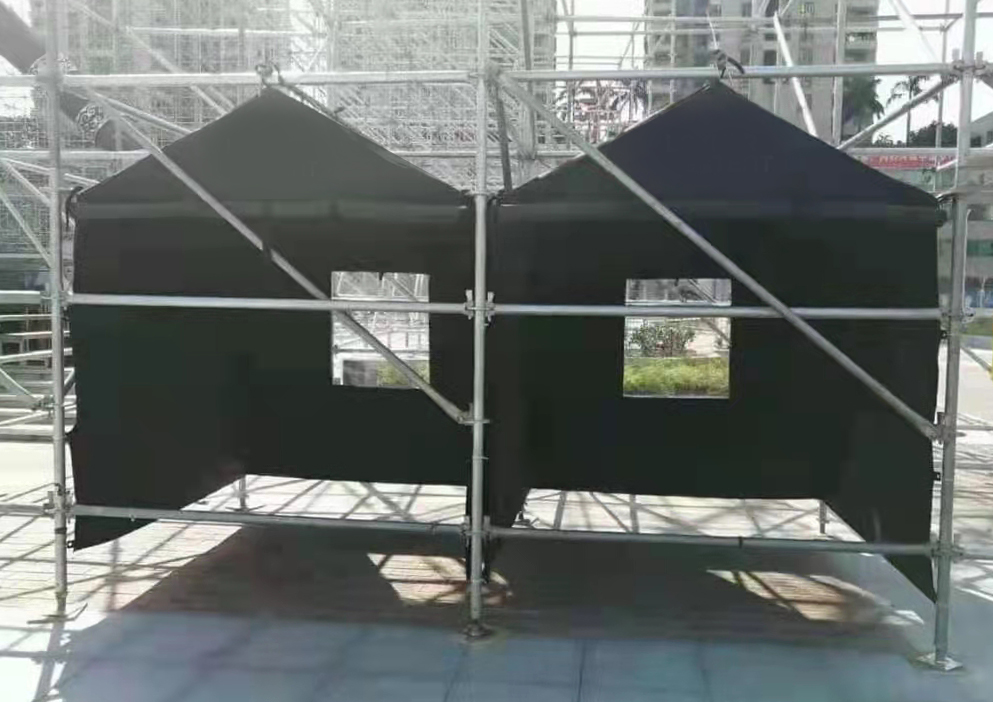

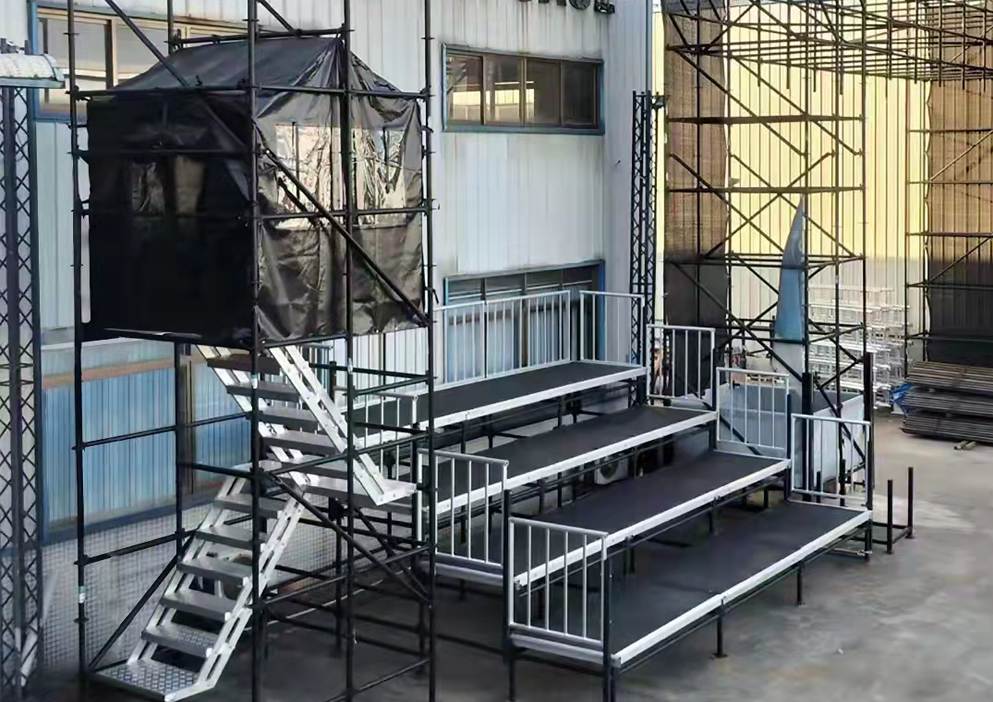

Layer Tent 雷亞架舞台 主控台棚房 |
|
|
|
產 品 說 明 |
|
快速搭建你的
雷亞架主控台 或 聲光控制室。提供一個遮風避雨的工作處所 或 指揮中心。不管在任何高度，我們都提供完整及安全的配套設施。利用上圖(LWL-2000)鋁合金工作內梯，以及使用下圖(LPF-2000)的鋁合金安全踏板，完美組成一個安全獨立的工作室。 |
|
|
|
|
|
Java
Scrip編輯,為能詳細瀏覽產品,請使用電腦瀏覽本網站。 |
|
|
|

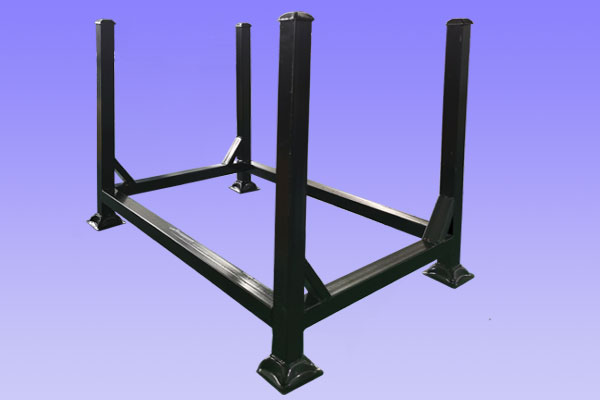

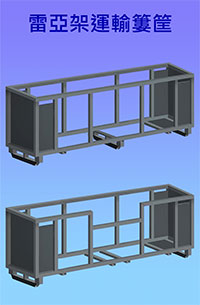

Layer
Transporting Frame:
运送框架 |
Layer
Platform with Hook
:
雷亚架跨板 |
 |
 |
|
Order Code |
Details
(27 kg) |
|
TRS-100 |
Zinc
Treatment..(鍍鋅) |
|
TRS-100B |
Black Treatment. (黑) |
|
|
Order Code |
Details |
|

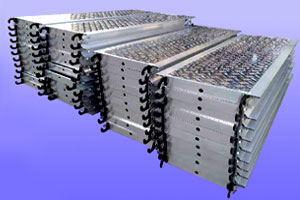

LPF-2000 |
L:2000mm/W:630mm/H:80mm |
|
铝合金-脚踏板/工作平台, 三片即可铺满格框. |
|
|
Weight:27kg,
Size:1200x1000x900mm, Can be put Pillars
+/- 50pc, Ledger or Diagonal Brace
+/- 100pc |
Weight:18 kg,
/
鋁合金型材,鋼質包膠勾扣.
Max. Loading: 500kg each.
|
|
|
|
|
|

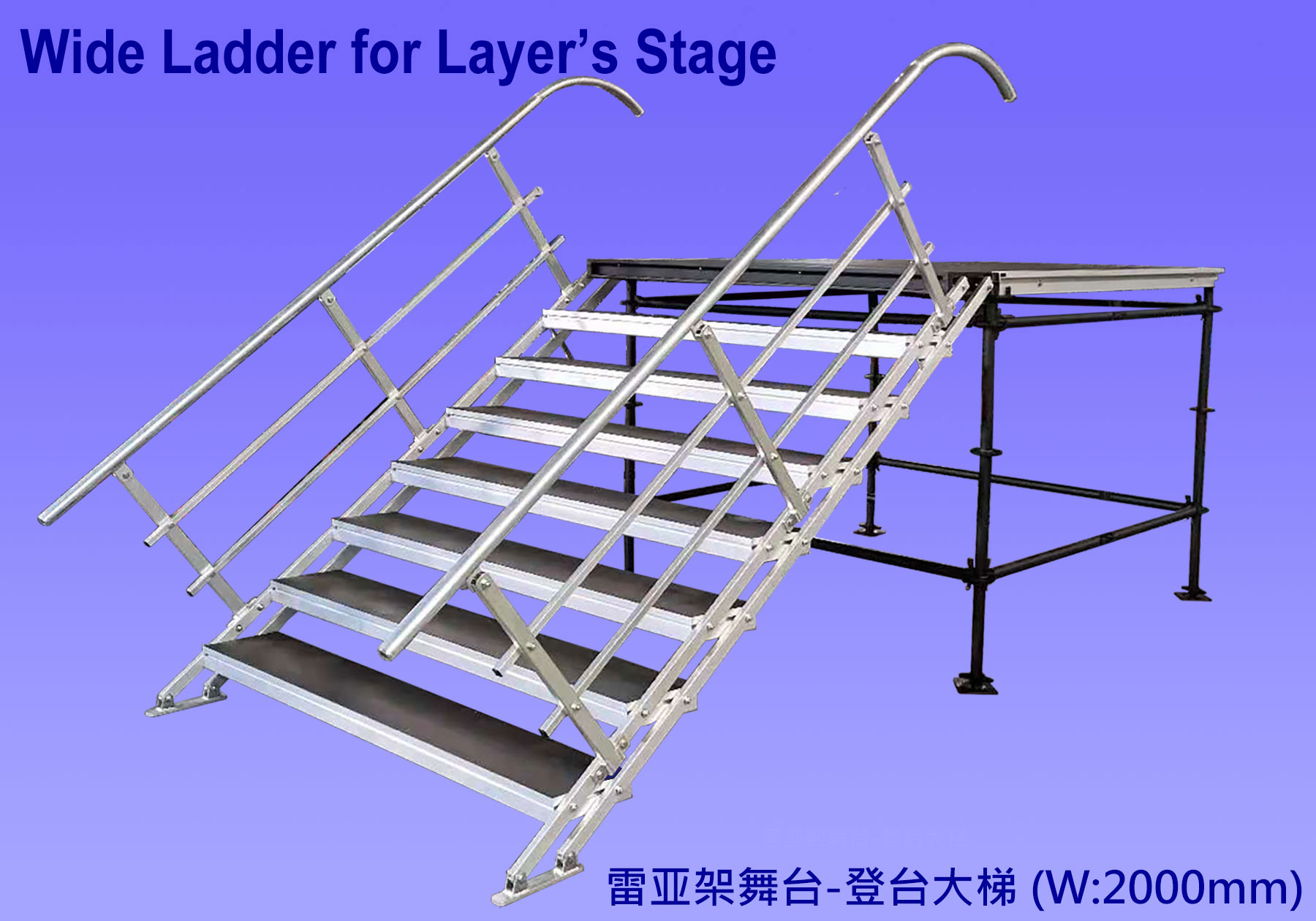

Wide Ladder for Layer's
Stage:
雷亞架舞台-登台大梯 |
|
 |
|
Details |
|
較寬的雷亞舞台演員登台大梯
: 可調仰度及高度,斜向42~48°, 寬200cm,
立高1.5~2.0米。最上階之梯板,使用與舞台相同之鐵皮包框,方便銜接 與 扣住雷亞架托盤。其餘部分使用鋁合金框架,
質輕,堅固,耐用。其護欄可拆卸,樓梯組可收合,方便運輸。 |
|
|
镀黑产品,
编号尾码
+
"B" |
|
|
|
|
|

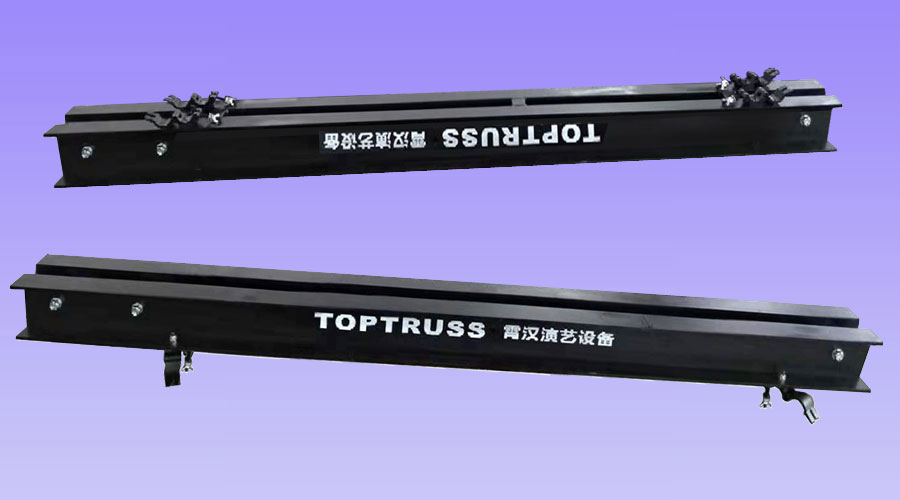

Layer
Top-Section bar for
Chain-Hoist : 雷亚架专用-葫芦横担 |
|
Using
on the top of Layer Frame, hide two Chain Rail
pulley on both side, use for guide and regulate
the hoist chains.
Length: 2800mm , Weight: 50kg
, Loading: 10 Tons. /
長:2.8米,重:50kg, 最大吊重:10噸。 |
 |
Order Code :
LA-MT01
( Original Color or Black color Coating./ 鋁本色 或
黑色處理.) |
|
|
 |
|

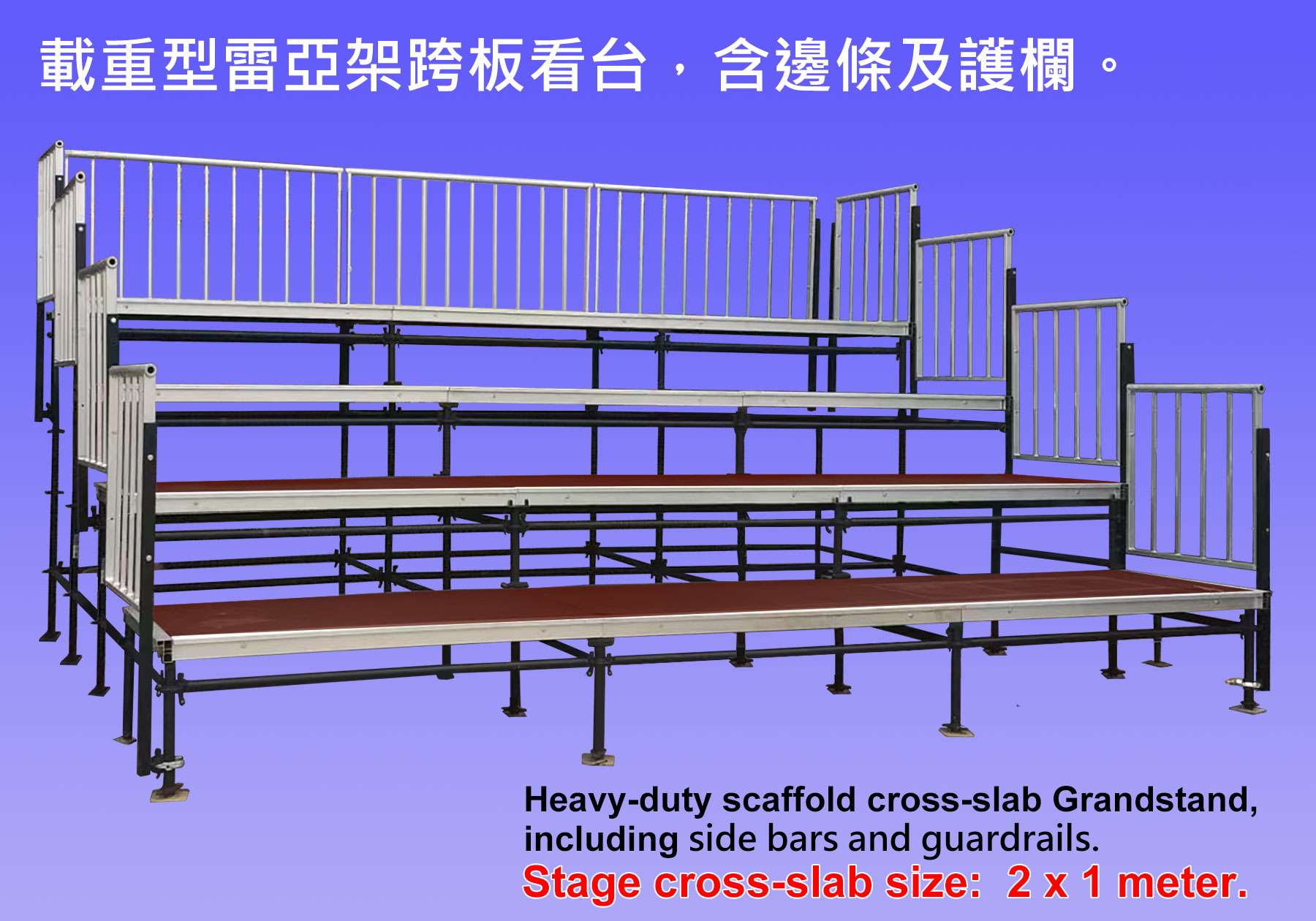

客制型看台，寬度與層次 依客戶要求報價與製作。每格二米寬。
|
|
|
|
