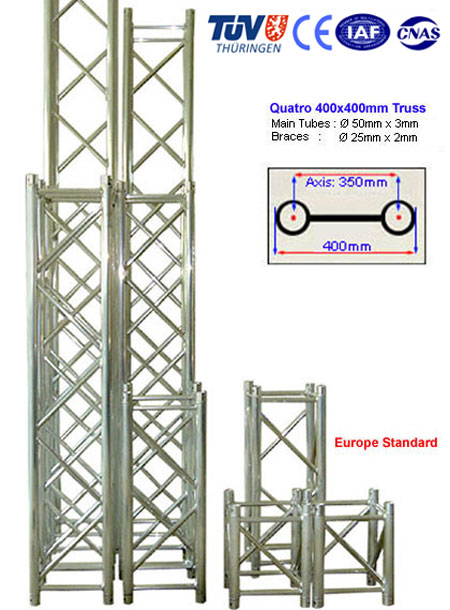

 Aluminium Truss >> Quatro 400 Truss >>  C40 Series, Quatro 400x400mm Straight . (400x400mm 正方型歐規桁架)

產品使用厚度3mm主管, 副管為25x2mm。如較大負載之使用,可內加焊對角斜管補強管. (產品編號則改為: X40系列, 例: X40-40130 )

Item No.  Length. Meas.
(C-Type) (mm) (cu'ft)
C40-40105 500 3.22
C40-40110 1000 6.23
C40-40115 1500 9.19
C40-40120 2000 12.17
C40-40125 2500 15.13
C40-40130 3000 18.10
C40-40140 4000 24.04

C-Series main tube thickness 3mm
B-Series main tube thickness 2mm
 Description :
 Tubes: Alloy EN AW6082-T6,
 Coupler: Alloy EN AW2011-T6
 Shape : 400x400mm Square.
 Long : 500mm to 4000mm,
 Main Tube : Ø50 x 3mm,
 Brace Tube : Ø25 x 2mm.


 Additional Diagonal Brace :
 If need use for beam and long span,
 There are also additional Diagonal
 Line Brace on the middle. for
 Crossbeam Anti-bending.
 1 meter for 2 pcs,
 2 meter for 3 pcs,
 3 meter for 4 pcs,
 4 meret for 5 pcs.
